- Description
-
Details

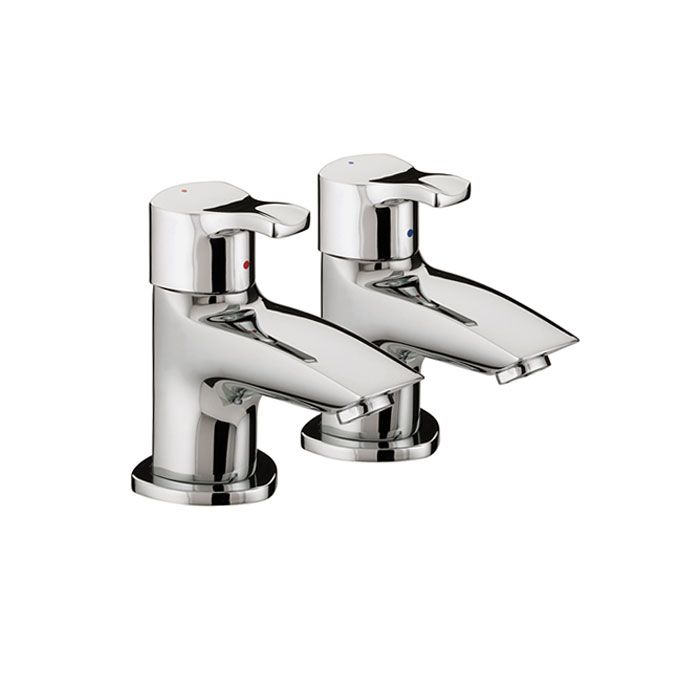

These bath taps are supplied as a pair without a waste. They are suitable for most baths with two tap holes. They feature simple lever controls handles and quarter turn ceramic disc technology within for ease of use and reliability. The Capri bath taps are manufactured in solid brass which is then chrome plated. They are only available in the chrome plated finish as shown.
Specification
- Measurements: (height) 108mm (depth) 125mm
- Spout Measurements: (projection) 85mm (height) 48mm
- Base Diameter: 55mm
- Product Type: Bathroom Taps
- Main Construction Material: Brass
- Mount Type: Deck
- Handle Type: Paddle
- Connection Inlet: 3/4” BSP
- Connection Outlet: M20 Flow Straightener
- Number of Tap Holes: 2
- Valve/Cartridge Type: 3/4” Ceramic Disc Valve
- Plumbing System Requirements: Suitable for all plumbing systems
- Minimum Dynamic Pressure (bar): 0.3 bar
- Maximum Dynamic Pressure (bar): 5 bar
- Maximum Hot Water Temperature °C: 65°C
- Maximum Static Pressure (bar): 10 bar
- Isolation Included: No
- Approvals: WRAS Approved
- Guarantee: 10 years
Features
- Long life and easy to use 1/4 turn ceramic disc valves
- Metal back nuts for added durability
- Easy-to-use lever handles
- Chrome plated to BS EN 248
Flow Rate (l/min) cold tap
- 0.3 bar: 17.2
- 0.5 bar: 23.5
- 1 bar: 33.5
- 2 bar: 48.2
- 3 bar: 58.4
- 5 bar: 75.4
Flow Rate (l/min) hot tap
- 0.2 bar: 16.7
- 0.5 bar: 22.8
- 1 bar: 33.2
- 2 bar: 48.1
- 3 bar: 58.2
- 5 bar: 75.1
- Additional Information
-
Additional Information
Installation Guide No Approvals WRAS Approved Basic Dimensions 108mm height, 82mm projection EAN Number 5014869084311 Guarantee 10 Years Pipe Centres No Manufacturer Bristan Minimum Recommended Pressure Low Pressure 0.3bar Valve Technology Ceramic Disc - Reviews
-
